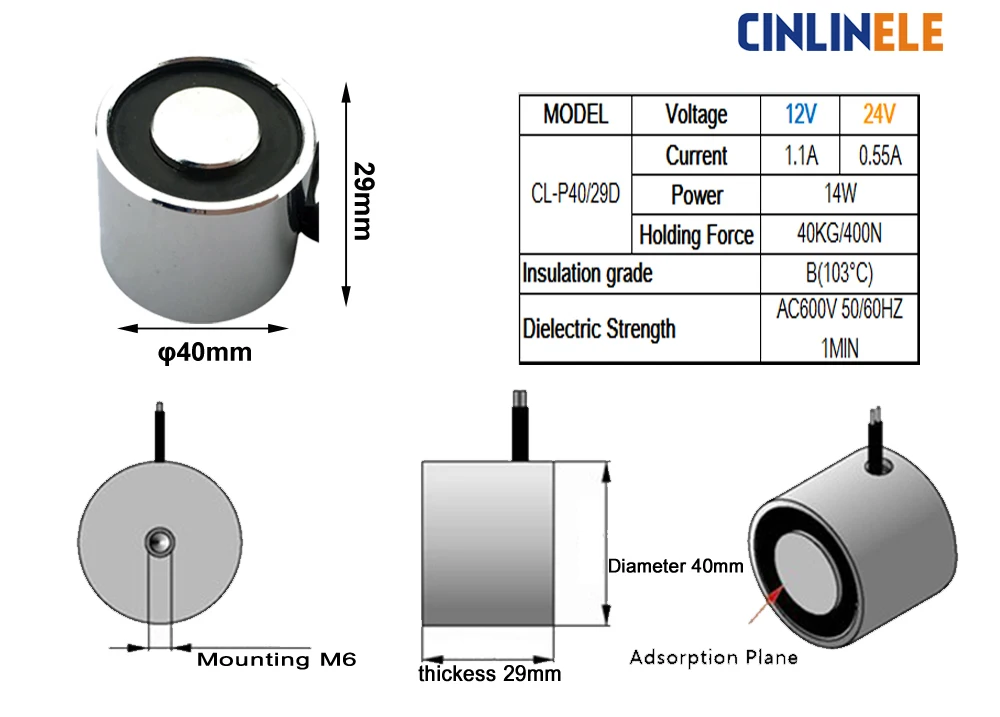

40x29mm DC 12V/24V Lifting Electropermanent Magnet — 40kg Hold Strength

  • $77.80


This 40mm diameter, 29mm high cylindrical electropermanent lifting magnet has a normal, permanent magnetic field. When an electrical current is applied, the magnet is deactivated and the magnetic field disappears.

These P40/29D magnets are recommended for applications when a magnetic field is required more than 50% of the time and are often used in door controls, alarms, machine guards and robotics. They require low levels of power and comes supplied with wiring for instantly attaching to an electrical source.

  • Brand: CINLINELE
  • Model No: CL-P 40/29D
  • Dimensions: 40mm x 29mm
  • Lead Length: 200mm
  • Thread Size: M6
  • Quantity: 1 Piece
  • Shape: Round Disc
  • Type: Electropermanent / Current Degaussing Magnet
  • Voltage: 12VDC / 24VDC
  • Holding Weight: 40kg
  • Initial Force: 400N
