160x50mm DC 6V/12V/24V Lifting Electromagnet — 25kg Hold Strength

  • $235.80

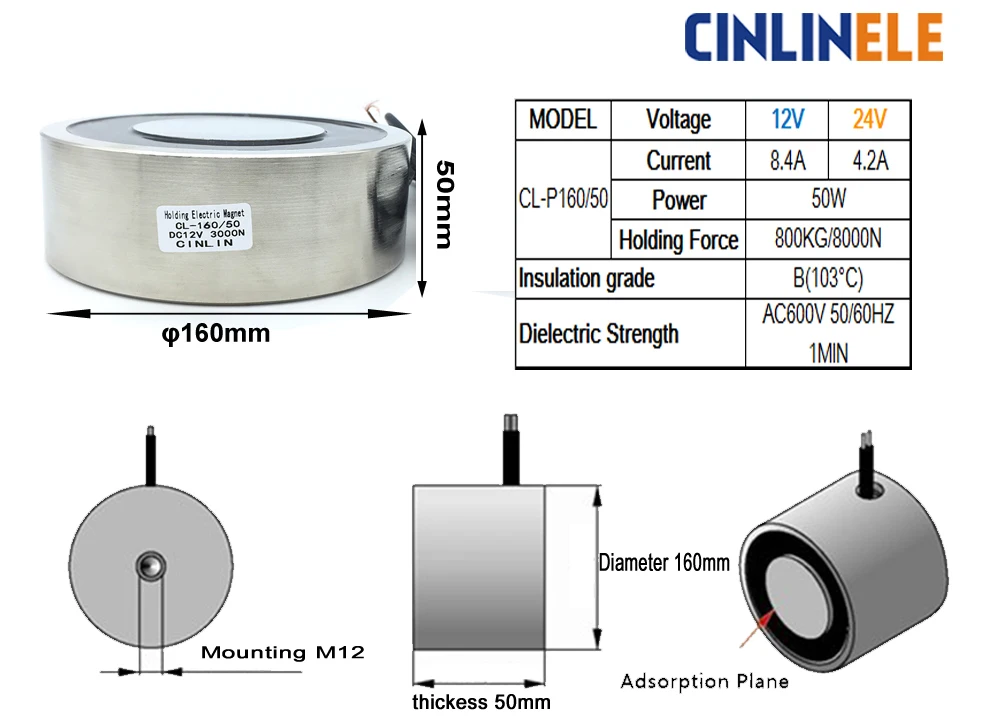

This 160mm diameter, 50mm high cylindrical electric lifting magnet is powerful, compact and provides a smooth, flat lifting surface. The magnetic field is activated by an electrical current, and disappears when switched off. This reliable magnet requires low levels of power and comes supplied with wiring for instantly attaching to an electrical source.

These P160/50 magnets are often used in door controls, alarms, machine guards and robotics.

  • Brand: CINLINELE
  • Model No: CL-P 160/50
  • Dimensions: 160mm x 50mm
  • Lead Length: 270mm
  • Thread Size: M12
  • Power Consumption: 4W
  • Quantity: 1 Piece
  • Shape: Round
  • Type: Electric Magnet
  • Voltage: 6VDC / 12VDC / 24VDC
  • Holding Weight: 800kg
  • Initial Force: 8000N
